K-series

Model:
Tình trạng: Liên hệ

High Excitation Force and Silent Water Cooled System for Improving Test Environment

High exciting force water cooled vibration simulating systems developed by IMV line up K-series. Cooling noise emitted during testing is significantly lower compared to air cooling systems. Performance of the K-series will definitely improve the user’s testing environment.

Bảo hành: Chưa có thông tin bảo hành

Giá bán: Liên hệ

Đặt hàng

Khung giờ giao hàng từ 8h00 - 18h00 hàng ngày.
Sản phẩm chính hãng, cung cấp CO & CQ.
Bảo hành miễn phí 12 tháng với máy chính.
Giá trên chỉ áp dụng đối với mặt hàng có sẵn.
Đối với mặt hàng không có sẵn sẽ tính thêm phí vận chuyển.

Gửi email yêu cầu báo giá: info@redstarvietnam.com Tất cả các ngày trong tuần

Đặc tính nổi bật
Thông số kỹ thuật
Ứng dụng
Nhận xét

● [Silent system design]

The water cooling system produces neither the intake nor exhaust sounds that an air cooling system emits.

● [Record of significant accomplishments]

IMV has been developing the water cooling system ahead of other domestic manufacturers.

	System Model		K030/ SA4MM	K049/ SA6MM	K062/ SA8MM	K080/ SA14HM	K100/ SA18HM	K125/ SA22HM	K160/ SA26HM	K200/ SA32HM
	Freq. Range(Hz)		0～ 3000	0～ 2500	0～ 2500	0～ 2500	0～ 2500	0～ 2500	0～ 2000	0～ 2000
System Specifications	Rated Force	SINE(kN)	30.8	49.0	61.7	80	100	125	160	200
		RANDOM (kNrms)^*2)	21.5	49.0	61.7	80	100	125	160	200
		SHOCK(kN)	61.6	98	123.4	160	200	250	320	400
	Max. Acc.	SINE (m/s²)	1000	1000	1000	1000	1000	1000	800	1000
		RANDOM (m/s²rms)	557	700	700	700	700	700	700	700
		SHOCK(m/s²)	2000	2000	2000	2000	2000	2000	1600	2000
	Max. Vel.	SINE(m/s)	1.8^*5)	2.0^*5)	2.0^*5)	2.0^*5)	2.0^*5)	2.0^*5)	2.0^*5)	2.0^*5)
	Max. Vel.	SHOCK(m/s)	1.8	2.0	2.0	2.0	2.0	2.0	2.4	2.4
	Max. Dsp.	SINE(mm^p-p)	51	51	51	51	51	51	76.2	76.2
	Max. Dsp.	MAX. TRAVEL (mm^p-p)	58	60	60	59	62	62	86	86
	Max. Load.(kg)		500	1000	1000	1000	2000	2000	2000	2000
	Power Requirements (kVA) ^*1)		49	76	87	100	150	170	270	300
Vibration Generatoer	Model		K030	K060	K060	K080	K125	K125	K200	K200
	Armature Mass(Kg)		27	40	40	60	70	70	200	200

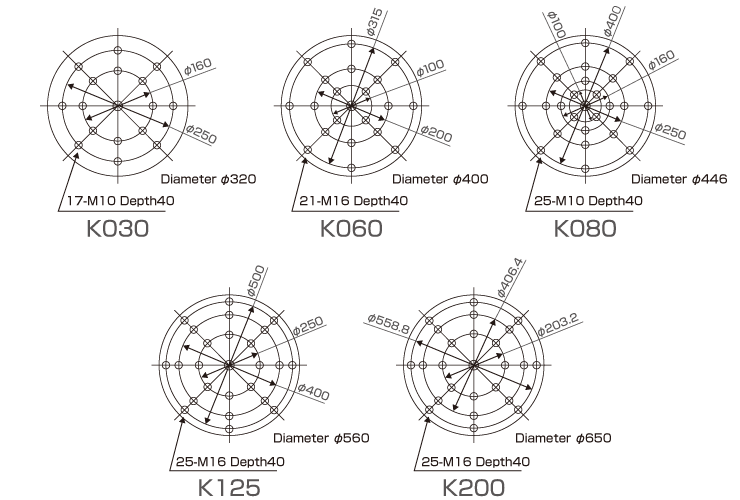

	Armature Diameter (φmm)		320	400	400	446	560	560	650	650
	Allowable eccentric moment (N･m)		980	980	980	1550	2450	2450	4900	4900
	Dimensions(mm) W×H×D		1100x 1090x 824	1380x 1085x 1000	1380x 1085x 1000	1595x 1050x 1200	1776x 1360x 1300	1776x 1360x 1300	2465x 1908x 1740	2465x 1908x 1740
	Mass(kg)		3000	3700	3700	5000	7000	7000	16000	16000
Power Amplifier	Model		SA4MM -K30	SA6MM -K60	SA8MM -K60	SA14HM -K80	SA18HM -K125	SA22HM -K125	SA26HM -K200	SA32HM -K200
	Max. Output(kVA)		33	43	60	100	98	124	256	320
	Dimensions(mm) W×H×D		580x 1950x 850	1160x 1950x 850	1160x 1950x 850	1740x 1950x 850	1740x 1950x 850	2320x 1950x 850	2900x 1950x 850	3480x 1950x 850
	Mass(kg)		950	1300	1350	2250	2400	3200	4000	4800
Controller	Vibration Controller		See Vibration Controller K2
Cooling	Cooling Method		Cooling Method Shaker:Water cooling/Power Amplifier:Air Cooling
Cooling	Primary Cooling Water Supply （Liters/min.)		195	260	260	390	390	390	520	520
Heat Exchanger	Dimensions(mm) W×H×D		580x 1700x 850	580x 1700x 850	580x 1700x 850	580x 1700x 850	580x 1700x 850	580x 1700x 850	950x 1900x 800	950x 1900x 800
Heat Exchanger	Mass(kg)		400	400	400	400	400	400	600	600

*1） Power supply required is 3-phase 200/220/240/380/400/415/440V,50/60Hz. Voltage Down Transformer (Step-down transformer) is required for other voltage.
*2） Rated force of RANDOM follow the ISO5344 standard. Please contact us for further information on RANDOM force conditions of each system.
*3） Each value of specification indicates maximum power of the system. In the case of a long hours of test, it needs to be operated less than 70% of maximum power.
(The continuous use could be the cause of a premature failure.)
*4） In the case of RANDOM durability test, please set the test definition of the peak value of acceleration waveform to be operated less than 1400 m/s².
*5） If the tests (SWEEP or SPOT) need high velocity, the maximum velocity value should be reduced to 1.4m/s.
In the case of continuous SINE test, at move than 1.4m/s, it may need optional cooling system, so please consult with us.
*6） Frequency range values vary according to sensor and signal generator.
*7） Mass and size can change in CE-support system.
