● Suitable for locating pinpoints and routes
● Locating can be carried out by just one person working alone
● Stable and flexible fibreglass push cable with a small bending radius
● Final destination coil
● Slip ring for feeding the fibreglass cable even when the transmitter is closed (only S models)
● Fine-tunable brake
● Metre counter (optional)

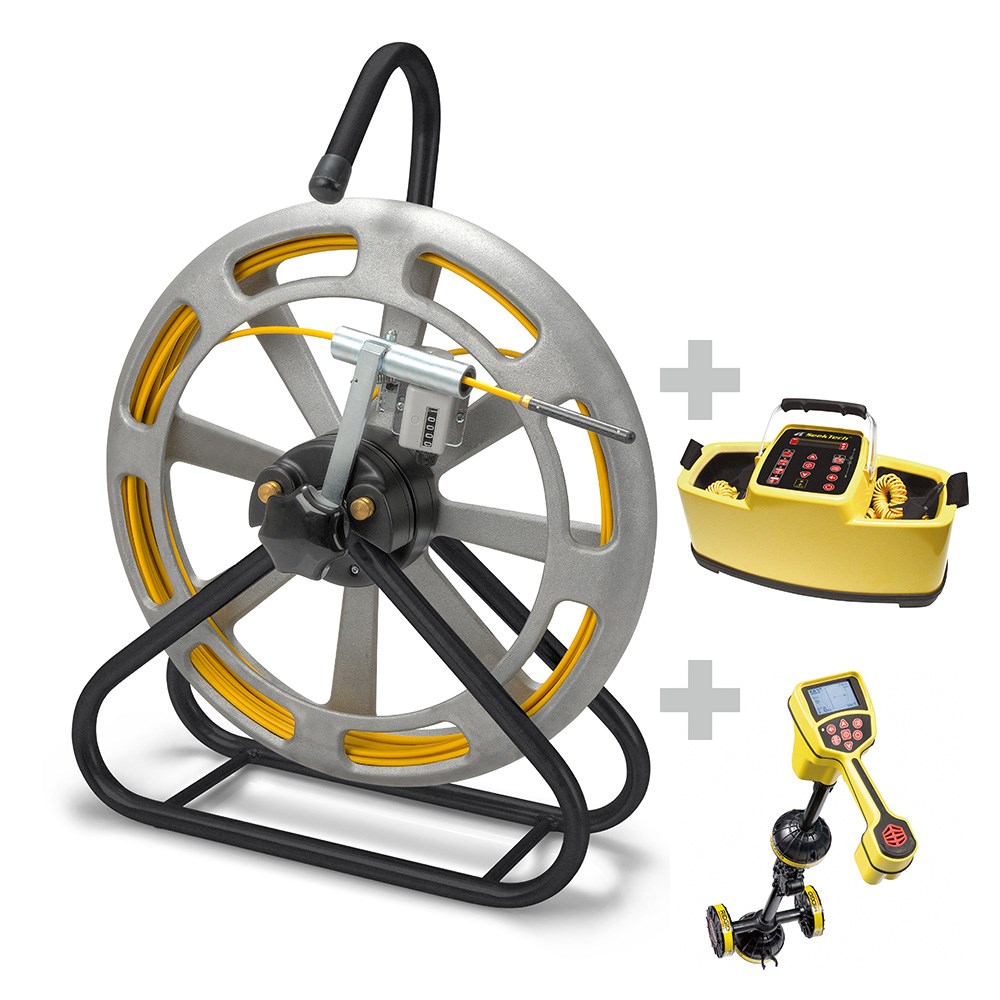

With the universal LTS locating systems, it is possible to locate pinpoints – e.g. for localising defective points in pipe systems or obstructions, drops of pipe pieces etc. – and also routes for determining pipe plans.
Copper conductors are built into the fibreglass cable of the locating systems, which, when connected to the transmitter, emit a locatable signal along the entire length of the cable. To do so, a transmitter cable is connected to the LTS and
the second is grounded.
|
Master data |
|
|
Article number |
3.110.005.040 |
|
Pipe detection |
|
|
Max. detection depth |
ca. 4 m (abhängig von der Beschaffenheit des überdeckenden Materials) |
|
Frequency to be used |
33 kHz |
|
Ø push cable |
4,5 mm |
|
Ø head of the probe |
12 mm |
|
Push cable length |
30 m |
|
Interfaces |
|
|
Banana plug socket(s) for the connection of transmission cables |
√ |
|
Power supply |
|
|
External (transmitting unit) |
√ |
|
Housing design |
|
|
Plastic |
— |
|
Metal |
√ |
|
Weight (packing excluded) |
|
|
Weight [kg] |
5,9 |
|
Dimensions (packing excluded) |
|
|
Length [mm] |
570 |
|
Width [mm] |
420 |
|
Height [mm] |
180 |
|
STANDARD SCOPE OF DELIVERY |
|
|
Operating manual |
|
|
Option |
√ |
|
Pulling and pushing tool |
|
|
Option |
— |
|
Spring guide head Ø 7 mm |
|
|
Option |
— |
|
Spring guide head Ø 10 mm |
|
|
Option |
— |
|
Brass pulling head with M5 thread and eyelet |
|
|
Option |
— |
|
New cable pulling strap with swivel for cables spring guide head Ø 6 - 9 mm |
|
|
Option |
— |
|
Brass rod ends with M5 thread |
|
|
Option |
— |
|
Three brass connection sleeves |
|
|
Option |
— |
|
Special fibreglass adhesive |
|
|
Option |
— |
|
ASCERTAINABLE MEASURED VALUES AND FUNCTIONS |
|
|
External sensors |
|
|
Passive emission of a detection frequency for pipe location |
√ |
|
Functions and equipment |
|
|
Pinpoint location option |
√ |
|
Route location option |
√ |
|
Optional application as cable installation system |
— |
|
With slip ring assembly |
— |
|
Brake precisely adjustable |
√ |
