| Model |
EMIA-8100: Simultaneous carbon/sulfur analysis EMIA-8110: Carbon analysis EMIA-8120: Sulfur analysis |
| Principle |
- NDIR/ Non Dispersive Infrared Gas Anaryzer - Tube-shaped electric resistance furnace method in oxygen flow |
| Range |
- Carbon: 0-6,0% - Sulfur: 0-1,0% - Up to 100% wt is possible by decreasing the sample weight. |
| Accuracy |
- Carbon - σn-1≦0.00015 %(m/m) or CV≦0,75% - Sulfur - σn-1≦0.0002 %(m/m) or CV≦2,0% |
| Sample weight | 1,0g standard |
| Sensitivity | 0,01ppm |
| Analysis time | Normally 40 to 60 seconds(after start combustion) variesaccording to the characteristics of the samples |
| Calibration | One-point or multi-point calibration using standard sample |
| Combustion furnace method/furnace structure |
- Tube-shaped electric resistance furnace with temperature increase function and oxygen pressure combustion - Operating temperature range: 400 to 1450°C - Temperature increase function: Settable up to 1450°C (10 slopes maximum) |
| Operation gas | Oxygen purity: More than 99.5% Dry air or nitrogen: Supply pressure 0.35MPa |
| Automatic cleaning mechanism | No available |
| Oxygen gas purifying unit |
Option |
| Power | Main unit: AC200V, 220V, 240V 5kVA 50/60Hz PC: AC100V 0,5kVA 50/60Hz |

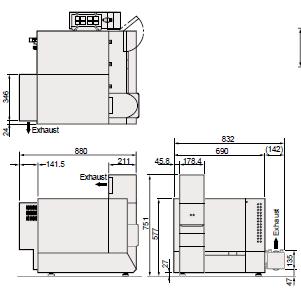

| Dimensions | 690(W)×880(D)×577(H)mm Approx.100 kg |
