● Measuring device designed and produced according to the highest quality standards in Germany
● German industrial design in robust, premium two-component construction with IP54 type of protection
● Continuous easy-to-clean glass surface made of highly scratch-resistant Blanview special glass for a high-contrast display
of measured values even in the sunlight
● Capacitive touchscreen control panel
● High-resolution colour display for simultaneous indication of two measured values
● Specifically designed for quick, non-destructive sub-surface measurements
● Moisture alarm function
● Grid measurement function via USB with active software connection
● Incl. MultiMeasure Studio measurement data management software (standard download version)

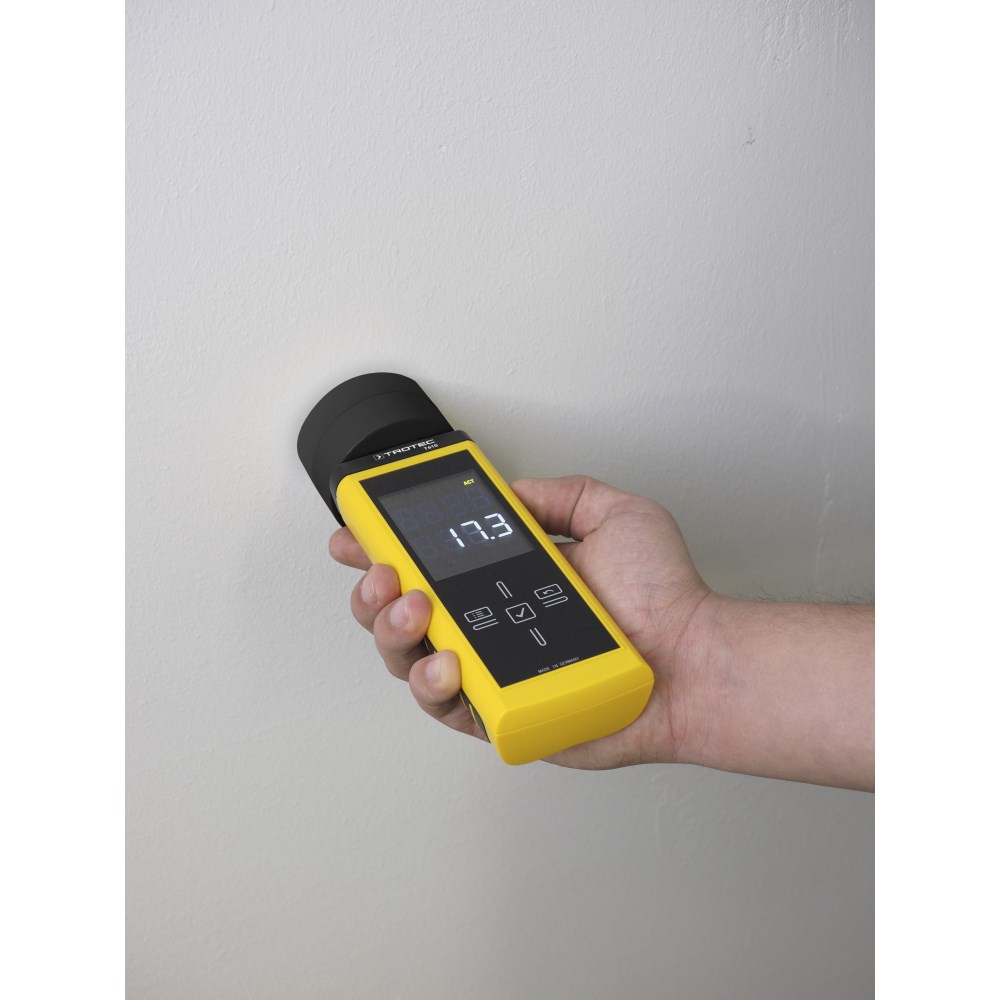

Using the T610, moisture distributions can be detected in building materials, walls, ceilings or floors to a depth of up to 300 mm – owing to the microwave technology. Moreover, the method works independent of the salinity degree of the material. For the microwave method it is, therefore, irrelevant whether an older or a new building is inspected.
The T610 comes equipped with particular display glass ensuring high-contrast presentation even in bright sunlight as well as enabling the quick and reliable detection of the moisture distribution in wall or floor areas when combined with the large-digit, real-time measurement value display.
Handy and time-saving: Prior to measuring you can define an individual limit value in the T610's settings. Should this alarm limit value be exceeded in the course of measuring, an acoustic warning signal is emitted automatically.

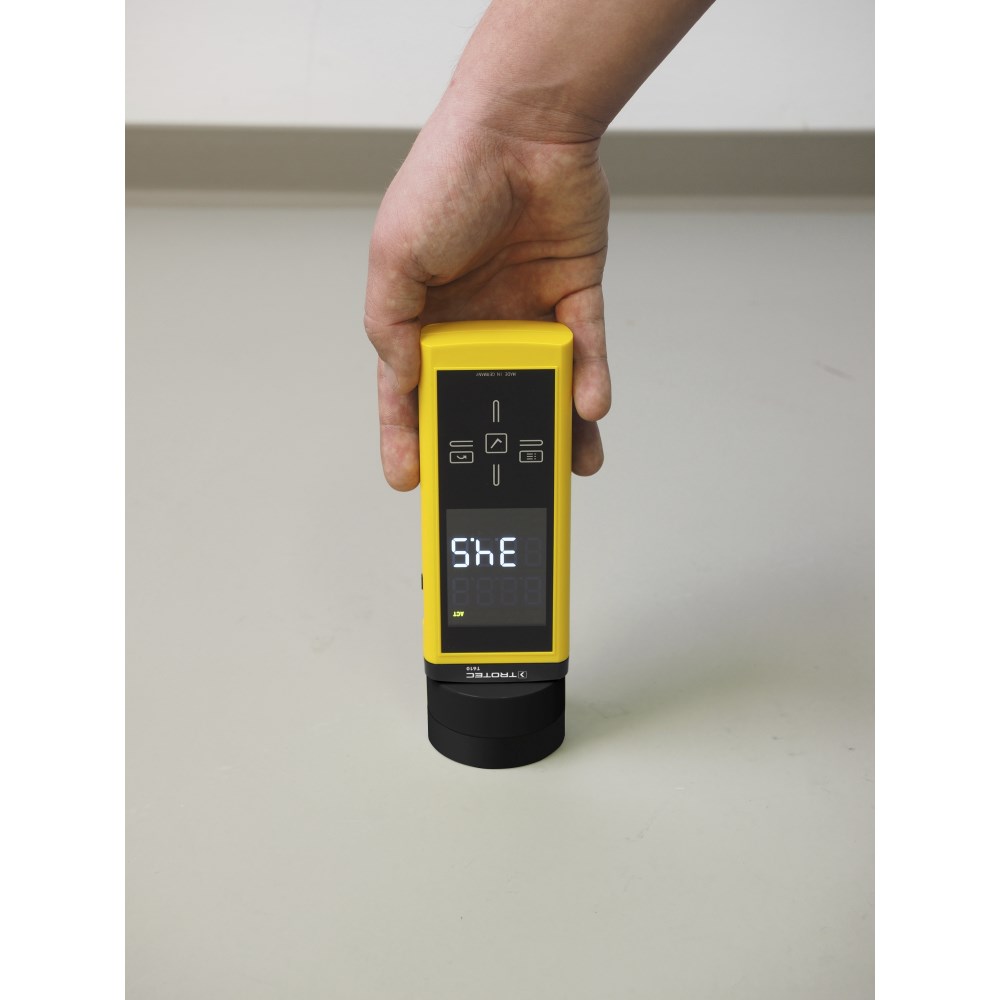

This way, large wall and floor areas can be measured quickly and effectively. During measuring, you can focus exclusively on the measuring object without the need to permanently keep an eye on the displayed measuring results.
 |
 |

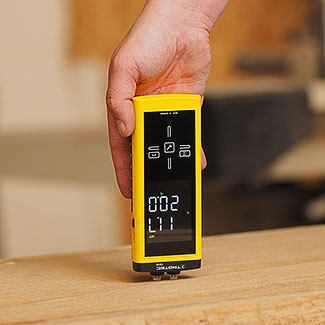

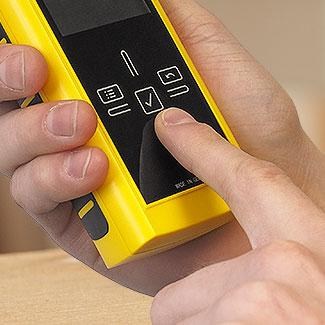

| The T510 simultaneously indicates the determined wood moisture value and the defined wood temperature. | The T510 comes with a continuous surface made of highly scratch-resistant Blanview special glass and capacitive touchscreen control panel. |
|
Owing to the combined measurement of sub-surface moisture with the T610 and of near-surface moisture with the T660, complex correlations can be distinguished, narrowed down and classified, e.g. hygroscopic humidity occurrences resulting from salinization or leak detection. In the course of this the T660 captures the topmost two to four cm of the construction material and the T610 measures the volume moisture values to a depth of 30 cm. Significant results regarding a multi-dimensional moisture distribution can be obtained via grid measurement based on surface and sub-surface moisture measurement values. With an active USB connection to the measuring device the MultiMeasure Studio software included in the scope of delivery provides a convenient assistance function for the creation and visualization of grid measurements.
|
Finally one software for basically all measuring devices
As optionally available Professional versionMultiMeasure Studio is not only perfectly suitable for fully compatible devices like the T610.
Owners of partially compatible or isolated measuring instruments can also benefit from this software, since it enables the analysis and administration of all measuring projects and customer data across multiple devices in a single application!
Using the unique report generating function you can create professional measurement reports in a trice:
Numerous boilerplate texts for building diagnostics, moisture measurement, leak detection and thermography are already included completely formulated (German version only).
|
|
Master data |
|
|
Article number |
3.510.207.600 |
|
Wood moisture [%] |
|
|
Min. measuring range |
— |
|
Max. measuring range |
— |
|
Resolution [%] |
— |
|
Accuracy [%] |
— |
|
Measuring principle |
— |
|
Min. temperature compensation |
— |
|
Max. temperature compensation |
— |
|
Material moisture [%] |
|
|
Min. measuring range |
— |
|
Max. measuring range |
— |
|
Accuracy [%] |
— |
|
Resolution [%] |
— |
|
Measuring principle |
— |
|
Material moisture [digits] |
|
|
Min. measuring range |
1 |
|
Accuracy |
0,1 |
|
Resolution |
0,1 |
|
Measuring principle |
Microwave |
|
Penetration depth [mm] |
Up to 300 mm (non-destructive) |
|
Max. measuring range |
200 |
|
Power supply |
|
|
Internal (battery) |
√ 4 x 1.5V LR6 AA |
|
Device control |
|
|
Push buttons |
— |
|
Thumbwheel |
— |
|
Surrounding conditions |
|
|
Operation – min. temperature [°C] |
0 |
|
Operation – max. temperature [°C] |
50 |
|
Operation – min. relative humidity [%] |
|
|
Operation – max. relative humidity [%] |
< 95 |
|
Display |
|
|
LCD |
√ |
|
Monochrome |
— |
|
Housing design |
|
|
Plastic |
√ |
|
Weight (packing excluded) |
|
|
Weight [kg] |
0,425 |
|
Dimensions (packing excluded) |
|
|
Length [mm] |
191 |
|
Width [mm] |
65 |
|
Height [mm] |
65 |
|
STANDARD SCOPE OF DELIVERY |
||
|
Battery(-ies) |
||
|
|
Option |
√ |
|
Operating manual |
||
|
|
Option |
√ |
|
Protective cap |
||
|
|
Option |
— |
|
Electrode tips (1.5 x 20 mm) |
||
|
|
Option |
— |
|
Electrode tips (2.2 x 8 mm) |
||
|
|
Option |
— |
|
2 x cap nuts |
||
|
|
Option |
— |
|
Wood type directory |
||
|
|
Option |
— |
|
Factory test certificate |
||
|
|
Option |
√ |
|
ASCERTAINABLE MEASURED VALUES AND FUNCTIONS |
|
|
Internal sensors |
|
|
Material moisture [digits] |
√ |
|
Wood moisture [%] |
— |
|
Material moisture [%] |
— |
|
Functions and equipment |
|
|
Maximum value display |
√ |
|
Minimum value display |
√ |
|
Hold function |
√ |
|
Acoustic alarm function |
√ |
|
Selection sensor characteristic map (sens) |
— |
|
Unit 2 |
— |
|
Selection of wood material characteristics (mat) |
— |
|
Temperature compensation |
— |
|
Manual temperature setting |
— |
|
Automatic functional test |
√ |
|
Automatic battery test |
√ |
|
Display illumination |
√ |
|
Automatic switch-off |
√ |
|
Non-destructive measurement method |
√ |
|
Mode selection slide control |
— |
|
Retaining clip |
— |
