Kính hiển vi lực nguyên tử Dimension XR

Model: Dimension XR
Tình trạng: Liên hệ

Bảo hành: Chưa có thông tin bảo hành

Giá bán: Liên hệ

Đặt hàng

Khung giờ giao hàng từ 8h00 - 18h00 hàng ngày.
Sản phẩm chính hãng, cung cấp CO & CQ.
Bảo hành miễn phí 12 tháng với máy chính.
Giá trên chỉ áp dụng đối với mặt hàng có sẵn.
Đối với mặt hàng không có sẵn sẽ tính thêm phí vận chuyển.

Gửi email yêu cầu báo giá: info@redstarvietnam.com Tất cả các ngày trong tuần

Đặc tính nổi bật
Ứng dụng
Nhận xét

Bruker’s Dimension XR scanning probe microscope (SPM) systems incorporate decades of research and technological innovation. With routine atomic defect resolution, and a host of unique technologies including PeakForce Tapping®, DataCube modes, SECM and AFM-nDMA, they deliver the utmost performance and capability. The Dimension XR family of SPMs package these technologies into turnkey solutions to address nanomechanical, nanoelectrical, and electrochemical applications. Quantification of materials and active nanoscale systems in air, fluid, electrical, or chemically reactive environments has never been easier.

XR Nanomechanics				XR Nanoelectrical				XR Nanoelectrochemical
XR Nanomechanics provides a range of modes to comprehensively detect the smallest structures with spatial resolution down to sub-molecular units of polymer chains. Researchers correlate nanomechanics data to bulk DMA and nanoidentation methods with our proprietary AFM-nDMA™ mode. Achieve quantifiable nanoscale characterization extending from soft sticky hydrogels and composites to stiff metals and ceramics.				Dimension XR Nanoelectrical configuration covers the broadest array of electrical AFM techniques in a single system. Researchers capture electrical spectra in every pixel correlated with mechanical property measurements with the proprietary DataCube modes. This system delivers previously unattainable information from a single measurement.				The nanoelectrical configuration enables robust AFM-based scanning electrochemical microscopy (AFM-SECM) and electrochemical AFM (EC-AFM). AFM operators acquire electrochemical information with

Highest Resolution for All Modes, All Environments From point defects in liquid and stiffness maps to atomic resolution in air and conductivity maps, Dimension XR systems deliver highest resolution in all measurements. They utilize Bruker’s proprietary PeakForce Tapping technology to achieve both hard and soft matter performance benchmarks, including crystal defect resolution and molecular defects in polymers. The same technology plays an equally important role in resolving the smallest asperities on roughened glass over hundreds of images. The systems combine PeakForce Tapping with extreme stability, unique probes technology, and Bruker’s decades of experience in tip scanning innovation. The result is highest resolution imaging consistently, completely independent of sample size, weight, or medium – and for any application.

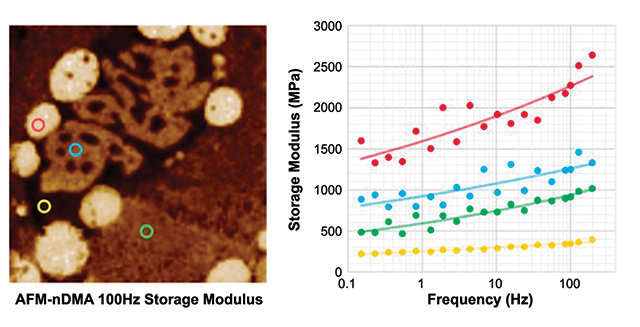

High-resolution storage modulus map on four-component (COC, PE, LLDPE, elastomer) polymer (left). Storage Modulus spectra collected at individual points (right).					Revolutionary AFM-nDMA For the first time an AFM can provide complete and quantitative viscoelastic analysis of polymers at the nanoscale, probing materials at rheologically relevant frequencies, in the linear regime. Proprietary dual-channel detection, phase-drift correction, and reference frequency tracking enable a small strain measurement in the rheologically relevant 0.1 Hz to 20 kHz range for nanoscale measurements of storage modulus, loss modulus, and loss tangent that tie directly to bulk DMA.

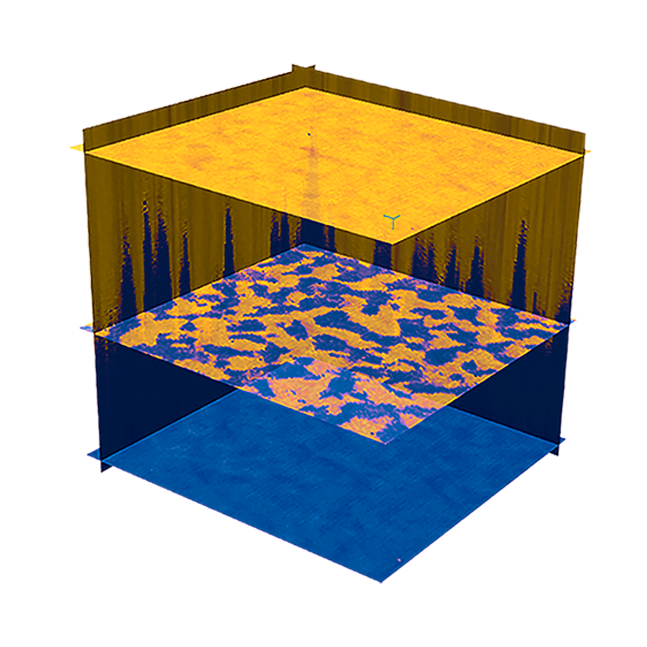

Proprietary DataCube Modes These modes utilize FASTForce Volume to perform a force-distance spectrum in every pixel, with a user-defined dwell time. Using high data capture rates, a multitude of electrical measurements are performed during the dwell time, resulting in electrical and mechanical spectra at every pixel. DataCube modes provide full characterization in a single experiment, which is unheard of in a commercial AFM.					A DCUBE-PFM measurement clearly shows the domains flipping at different potential levels for each discrete pixel on a BiFeO3 thin film.

*Bruker's NanoScope 6 AFM controller* Leading-edge AFM controller built on an innovative high-speed, low-noise architecture for delivering unprecedented measurement performance					Powered by the NanoScope 6 AFM Controller Featuring higher speeds, lower noise, and greater AFM mode flexibility, the NanoScope 6 controller allows users to harness the full potential of our high-performance Dimension and MultiMode AFM systems. This latest generation controller provides unprecedented accuracy, precision, and versatility for nanoscale surface measurements in every application. NanoScope 6 uniquely enables Bruker AFMs to: Operate in more imaging modes than is possible with competing systems, including unique and advanced AFM modes that require complex control and analysis; Collect accurate, quantitative data for nanoelectrical and nanomechanical property measurements in every application; and Optimize and customize scanning parameters to meet even the most demanding research and industry measurement requirements.
