Stand Type Cabinets

State: In stock

Large and tall dimensions with 3 tier pull-out storage drawers.
Tall cabinet models are useful for storing large amounts of liquid and solid substances.

Warranty: No warranty infomation

Price: Contact us

Order

Delivery time: 8h00 - 18h00 daily
Genuine product, provided width CO, CQ
03 months of free warranty for consumable and accessories
12 months of free warranty for main equipment
Accessorie's price is applied only when purchased with
main equipment
Contact us for any particular accessory's quotion

Email: info@redstarvietnam.com Every day in week

Features
Specifications
Comments

The fully extendable drawers can be accessed from either left or right side of the cabinets.

Hidden wheels under the lower drawer for DS-SL and DS-S models easily support 60kg.

Connect multiple cabinets side by side to make the cabinets sturdy and balanced.
The air and vapor vented through both sides of the cabinet vent slits.

The removable name plates come included for keeping track of inventory.

Adjustable bracket mounts in the cabinet, designed for placing PP trays at any height.

Each tray comes standard with four tray dividers.

Four anchors are provided for ensuring the cabinet safely fixed on the floor.

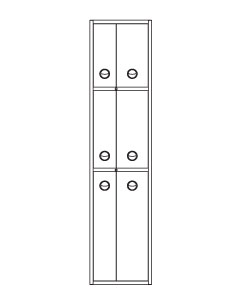

DS-SL
	Exterior height (mm / inch)		2400 / 94.5	2400 / 94.5	2400 / 94.5
	Exterior width (mm / inch)		476 / 18.7	560 / 22.0	644 / 26.1
	Each drawer width (mm / inch)	Left	194 / 7.6	194 / 7.6	278 / 10.9
	Each drawer width (mm / inch)	Right	194 / 7.6	278 / 10.9	278 / 10.9
	No. of tray (standard / max.)	Upper	3 / 3	3 / 3	3 / 3
		Middle	3 / 4	3 / 4	3 / 4
		Lower	4 / 6	4 / 6	4 / 6
	Max. load per tray (kg / lbs)	Upper, Middle	30 / 66.1	30 / 66.1	30 / 66.1
	Max. load per tray (kg / lbs)	Lower	60 / 132.3	60 / 132.3	60 / 132.3
	No. of name plate		6	6	6
	Exterior depth (mm / inch)		700 / 27.6	700 / 27.6	700 / 27.6
	Net weight (kg / lbs)		181 / 339.0	196 / 432.1	212 / 467.4
	Model		DS-SL-24047D6	DS-SL-24056D6	DS-SL-24064D6
	Cat. No.		AAAF1080	AAAF1081	AAAF1082

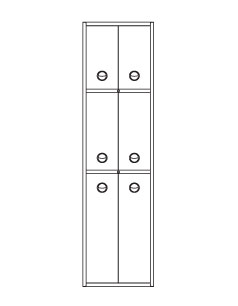

DS-S
	Exterior height (mm / inch)		1800 / 70.9	1800 / 70.9	1800 / 70.9	1800 / 70.9	1800 / 70.9
	Exterior width (mm / inch)		476 / 18.7	560 / 22.1	644 / 25.4	686 / 27.0	938 / 36.9
	Each drawer width (mm / inch)	Left	194 / 7.6	194 / 7.6	278 / 10.9	194 / 7.6	278 / 10.9
		Middle	-	-	-	194 / 7.6	278 / 10.9
		Right	194 / 7.6	278 / 10.9	278 / 10.9	194 / 7.6	278 / 10.9
	No. of tray (standard / max.)	Upper	3 / 4	3 / 4	3 / 4	3 / 4	3 / 4
	No. of tray (standard / max.)	Lower	4 / 6	4 / 6	4 / 6	4 / 6	4 / 6
	Max. load per tray (kg / lbs)	Upper	30 / 66.1	30 / 66.1	30 / 66.1	30 / 66.1	30 / 66.1
	Max. load per tray (kg / lbs)	Lower	60 / 132.3	60 / 132.3	60 / 132.3	60 / 132.3	60 / 132.3
	No. of name plate		4	4	4	6	6
	Exterior depth (mm / inch)		700 / 27.6	700 / 27.6	700 / 27.6	700 / 27.6	700 / 27.6
	Net weight (kg / lbs)		124 / 273.4	137 / 302.0	146 / 321.9	172 / 379.2	206 / 454.2
	Model		DS-S-18047D4	DS-S-18056D4	DS-S-18064D4	DS-S-18068D6	DS-S-18093D6
	Cat. No.		AAAF1000	AAAF1001	AAAF1002	AAAF1003	AAAF1004
	Exterior depth (mm / inch)		550 / 21.6	550 / 21.6	550 / 21.6	550 / 21.6	550 / 21.6
	Net weight (kg / lbs)		107 / 235.9	119 / 262.4	126 / 277.8	148 / 326.3	178 / 392.4
	Model		DS-S-18047N4	DS-S-18056N4	DS-S-18064N4	DS-S-18068N6	DS-S-18093N6
	Cat. No.		AAAF1005	AAAF1006	AAAF1007	AAAF1008	AAAF1009
