Performance
● Temperature range from ambient +7℃ to 100℃.
● On/off temperature control.
Convenience

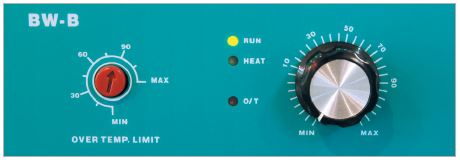

● Simple and quick control panel.
Safety
● Isolated design of heater, and sensor by a baffle plate to protect users and samples against direct contact.| Model | BW-05B | BW-10B | BW-20B | ||||
|
Bath Volume (L / cu ft) |
3.5 / 0.1 |
11.5 / 0.4 |
20 / 0.7 |
||||
|
Working Temperature Range (℃ / oF) |
Amb. +7 to 100 / Amb. +12.6 to 212 |
||||||
|
Temperature Stability 1) (±℃ / oF) |
±0.5 / 0.9 |
||||||
|
Dimension |
Bath Opening / Depth (W×L, D) (mm / inch) |
240×136, 110 / 9.4×5.4, 4.5 |
300×240, 165 / 11.8×9.5, 6.5 |
498×300, 165 / 19.6×11.8, 6.5 |
|||
|
Overall (W×L×H) (mm / inch) |
303×242×245 / 11.9×9.5×9.6 |
357×330×290 / 14.1×13×11.4 |
564×392×290 / 22.2×15.4×11.6 |
||||
|
Net Weight (kg / lbs) |
6.5 / 14.3 |
10 / 22 |
18.5 / 40.8 |
||||
|
Electrical Requirements (230V) |
60Hz, 3A |
50Hz, 3A |
60Hz, 4.3A |
50Hz, 4.3A |
60Hz, 8.7A |
560Hz, 8.7A |
|
|
Cat. No. |
AAH46011K | AAH46012K | AAH46021K | AAH46022K | AAH46031K | AAH46032K | |
|
Electrical Requirements (120V) |
60Hz, 5.8A | 60Hz, 8.3A | 60Hz, 8.3A | ||||
|
Cat. No. |
AAH46013U | AAH46023U | AAH46033U | ||||
1) Technical data according to DIN 12876. (Bath fluid : water at 50℃)
